Tractor towing square straw strapping baler machine丨round pickup baler

Nowadays, most farmers use the square straw strapping and baler machine for the collection of dry and green pasture, rice, wheat, and corn stalks. And the stalk baler machine has the characteristics of compact structure, convenient operation, and high reliability. So the formed bale is small and compact, and the bale is loose inside and tight outside. And, the bale has good air permeability, easy to transport and store.

Brief introduction of straw picking and baling machine

Our Taizy has manufactured two types of silage cutting and baling machines. One is the 9YFQ-2.2 square straw strapping baler machine and another one is the ST-70*100 round pickup baler. Both machines can crush, pick up and bale various stalks. They are professional equipment. And they must work with a tractor to complete the picking and bundling of forage, soybean, rice straw, wheat, and other crop stalks. The shape of the finished straw can be round or square. Besides these two kinds of silage baler machines, we also have silage balers, which can bale the crushed material only and can not walk in the field. So we should cut the material through the grass cutting machines before using this silage baler. And this passage is mainly about the square and round silage cutting and baling machines.

The popularization and use of these machines have played a huge role in solving straw recycling. And they can also improve the environmental conditions because of rural straw burning. And improving the quality of straw use. Also, they are ideal equipment for forage collection and straw fuel collection, and bundling. Since the launch of these machines, they are the favorite machine of farmers. So, it is a good helper to make a fortune.

What materials can the tractor baler process?

These machines can process dry, green pasture, rice, wheat, corn stalks, forage, etc.

Type 1: Square straw strapping baler machine

This type of square straw cutting and baling machine can bale the various straw into a square shape. The square straw should work with the tractor. And the power will be transported through the PTO. As for the size of the finished baler, our machine can produce a 1100*400*300mm square baler. There are two kinds of materials used when the straw crushing pick-up baler is bundling: hemp rope and plastic net rope. The square straw shredding pick-up baler can only use hemp rope.

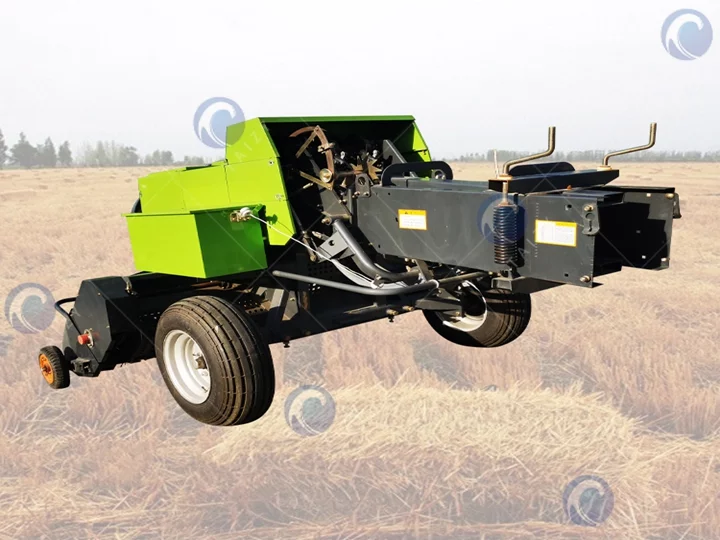

square straw strapping baler machine
square straw strapping baler machine

Structure of tractor towing square stalk baling machine

The square straw strapping and baler machine includes a traction beam, a picker, a screw conveyor, a feeding mechanism, a piston, a baling chamber, a baling mechanism, a bale density adjustment device, and a transmission system.

1. Firstly, the function of the picker is to pick up the grass strips laid on the ground. And then raise the feeding platform. The picker adopts a four-row spring-toothed roller structure.

2. Secondly, the function of the conveying and feeding mechanism is to collect the materials laterally and feed them into the baling chamber. The conveying and feeding mechanism includes a screw auger conveyor and a feeding fork mechanism.

3. Thirdly, the piston and the baling chamber can compress the material fed into the baling chamber. And the piston is a crank connecting rod mechanism. The binding chamber is a rectangular cavity formed by welding steel plates.

4. And, the bale density controller is to adjust the bale density. According to forage species and humidity, the operator can adjust the spring tension to obtain a moderately tight bale.

square stalk baler's structure
square stalk baler’s structure

Working principle of square stalk strapping and baling machine

Straw strapping and baler machine can work with the tractor’s powder. And in the process of field operations, the spring teeth of the picker pick up the ground grass strips. And then lift them to the conveying and feeding platform.

Then the symmetrical screw conveyor behind the picker pushes the material from both sides to the feeding inlet.

The feeding fork will add the accumulated materials at the feeding inlet into the baling chamber during its working process. And under the upward action of the piston, the material is gradually compacted in the baling chamber.

When the length of the bale reaches the set length. The strapping mechanism clutch starts the operation of the strapping mechanism. And in the working process of the knotter, the two bundles of rope envelop the bale.

Then the subsequent materials will push the bundled bales gradually to the exit of the baling chamber. Then fall to the ground through the baling plate.

Working video of square stalk baling machine

Parameter of an automatic tractor towing square baler

ModelPicker withPicker structure typeKnotter typeNumber of knottersReciprocation times of the bundled pistonDimensions(mm)Supporting power
9YFQ-2.22240mmSpring toothD2100/min4150×2850×1800≥36.7kw
Parameter of an automatic tractor towing square baler

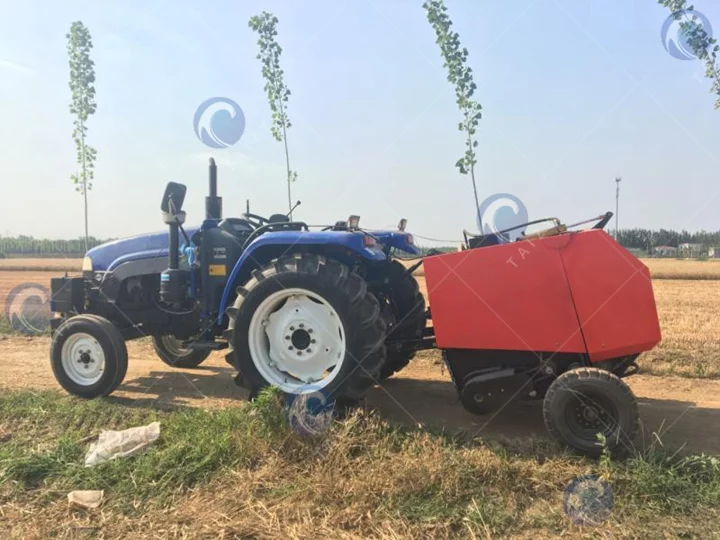

Type 2: Round straw picking and shredding baler

This kind of straw baler can produce round stalk bales. The machine also needs to work with a tractor, with a three-point hitch and PTO to transmit power to the round pick and baler. Regarding the material to be baled, the machine can use either net rope or hemp rope. And the finished round bale’s size is 70*100mm.

What are the structure of the round hay cutter and baler machine?

The round hay cutter and baler machine mainly have a hydraulic cylinder, hemp rope, switch compartment lever, PTO, fender, etc. It is compact and easy to operate.

round silage cutting and baling machine
round silage cutting and baling machine

What is the specification of a round hay baler?

ModelSTF 70*100
Working capacity0.82-1.3 acre
round hay baler’s parameter

Advantages of square and round balers

1. Both machines have high bundling efficiency and high density. And it is suitable for extrusion and bundling of corn stalks, wheat straw, straw, pasture, etc.

2. Besides, it can greatly reduce the storage area, improve the transportation capacity, and reduce the possibility of fire.

3. Easy to store. The bundled grass volume is smaller by two-thirds than unbaled grass, which can greatly reduce the area of the pasture.

4. Convenient for loading, unloading, and transportation. These machines can make full use of the carrying capacity of the means of transport. And generally, the transportation capacity can increase by 2-3 times. So it can save labor and transportation costs by more than 50%.

Main features of automatic silage balers

1. Knotting device imported from Germany ( Rasboa, Germany producing). So, the reliability is high, and the bundling rate is as high as 99%.

2. Also, the appearance is more beautiful and safer to use.

3. And double-side brake bundling damping device makes the bundling action more stable.

4. What’s more the double-row chain main chain makes the machine more suitable for heavy-duty bundling operations.

5. Wide-section tires make the walking operation more stable.

6. The whole machine adopts the symmetrical structure design of the longitudinal axis. Mid-mounted traction, good driving stability, and small turning radius.

7. Using a hollow auger structure to make the crop feed more smoothly. No accumulation, no entanglement.
